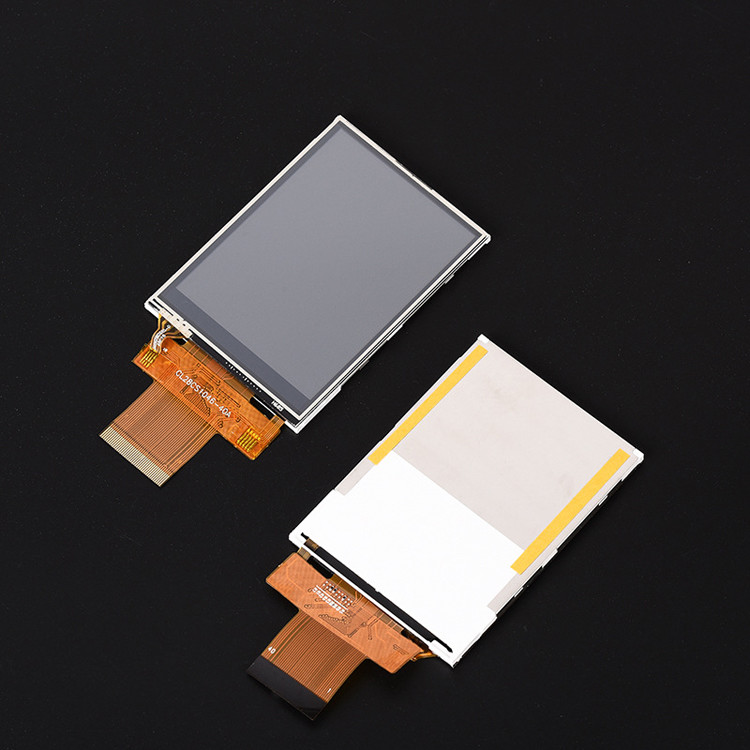

240X320 TFT LCD 2.8 Inch Mini Display With Capacitive Touch Screen
Products Application field:
Audio product Medical Equipment
Industrial product(watermeter, electronicmeter,Equipment )
Automobiles Sports Equipment Watches Household appliance(air
condition/wash machine/electronic cooler/ refrigerator/disinfection
cabinet/ wash bowl machine/ calculator /electronic scale etc.)
| 1 | Product name | 240X320 TFT LCD 2.8 Inch Mini Display with Capacitive Touch Screen |
| 2 | Dot Arrangement | 240x(R.G.B)x320 |
| 3 | Module Size | 50.00x69.20x2.45mm |
| 4 | Active Area | 43.2x57.6mm |
| 5 | Interface | CPU 8/16 Bits |
| 6 | Driver IC | ST7789 |
| 7 | Backlight | 4 White LED In Parallel |
| 8 | FPC Type | Soldering Type |
| 9 | Viewing Angle | 6 O'Clock |
| 10 | Operation Temp | -20~+70C |
| 11 | Touch panel | Option of resistive touch panel |
V
FAQ:
Q: Do you have data sheets?
A: Yes, we have data sheets of our LCD modules. You may ask our
sales for help.
Q: Do you have LCD modules in stock?
A: We don’t have products in stock now. But we may prepare some
later on, please feel free to ask our staff to check.
Q: How can I know which size is suitable for our application?
A: Please ask your engineer for guidance to make sure the size of
your product(length*width*thickness in mm) and the
function of it. Based on the above information, we will suggest the
ideal size of the LCD module for your product.
Q: How to choose a suitable model of LCD display for a new project?
A: Think about the following key points to define a model you need,
such as size/resolution/thickness/LCD interface
view angle/brightness/operation temperature and so on.
Q. How do I work with you on Customized products?
A: Firstly please provide us the description of your special
requirements, any Drawing or Specification---Our engineers will
work out
the compatible solution and also mould cost (if any)---We provide
Drawing and Specification for Approval---We provide samples
for approval after reliability test and aging test---We make
modification if necessary---We do small quantity of
trial order (if required)---We do mass production.
Q. How long is the warranty and what is your after-sales service?
A: Usually 12 Months.
If there is any defect within 12months from receiving products,
please contact our sales, we will respond within 24hours. If we
require
any product to be returned to us, the shipping cost will be fully
paid by us.
Why choose our company
1. Small MOQ accepted.
2. Competitive price and short lead-time.
3. ISO9001 and ROSH certificated factory supplied.
4. Professional?technicians and QC team test the original products
one
by one to ensure every products are perfect before package and
shipment!
5. Dedicated and professional sales team provide immediate service
