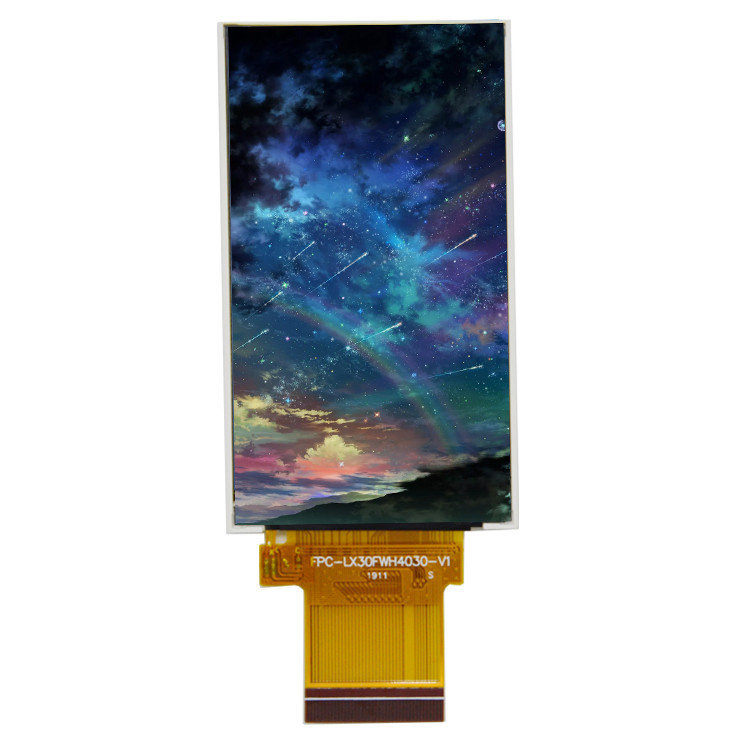

262K IPS TFT Small LCD Screens

Our products are 100% Visual and Function test before shipments. Meanwhile,
All our products must pass necessary tests, Store and Operate in High and Low
Temperature & High Humidity Environment, ESD and anti-interference test , Drop
and Vibration Test. Our experience and proficiency make the qualification rate always
being 99.7% or above.

Item	Specification
Display Mode	Normally White,Transmissive
Display Technology	α-Si TFT active matrix
Outline Dimension	42.64(H) X 74.49(V) X 1.9(T) mm
Active Area	36.84 (H) X 65.52 (V) mm
Resolution	240X(RGB)X960 dots
Pixel Pitch	0.1535X0.20475 mm
Pixel Configuration	RGB Stripe
Backlight	White LED
Luminance	(300)(Typ.) cd/m2
Viewing Direction	All view angle

NO.	Symbol	I/O or connect to	Description	When not in use
1	NC	Power ground.	-
2	VDD	Power supply for analog and booster circuits, 2.3V~3.3V.	-
3	IOVCC	PWR SUPPLY	Power supply for digital interface , 1.65V~3.3V.	-
4-6	NC	-	No connect.	-
7-8	GND	PWR SUPPLY	Power ground.	-
9	CS	I/O	Serial communication chip select.	GND/IOVCC
10	SDA	I/O	Serial communication data input.	GND/IOVCC
11	SCL	I/O	Serial communication clock input.	GND/IOVCC
12	HS	I/O	Horizontal Sync input. Negative polarity.	GND/IOVCC
13	VS	I/O	Vertical Sync input. Negative polarity.	GND/IOVCC
14	DCLK	I/O	Dot clock signal for RGB interface operation.	GND/IOVCC
15-16	NC	-	No connect.	-
17-18	GND	PWR SUPPLY	Power ground.	-
19-26	DB7-DB0	I/O	R.G.B Data bus.	GND/IOVCC
29-30	LEDA	LED DRIVER	Backlight anode.	-
31-32	LEDK	LED DRIVER	Backlight cathode.	-
33-34	GND	PWR SUPPLY	Power ground.	-
35-36	NC	-	No connect.	-
37	YU	-	RTP up signal.	-
38	XL	-	RTP left signal.	-
39	YD	-	RTP down signal.	-
39	XR	-	RTP right signal.	-

262K IPS TFT Small LCD Screens

Quality Control :

Our technicians and QC team test the original products one by one to ensure every products are perfect one before package and shipment!
We will test goods strictly according to our standard inspection before shipment.
If exceed this standard, clients can ask for returning and get new.

Packaging and Delivery:

1). Payment Terms: T/T, Paypal

2). Shipping: Prompt delivery by UPS, EMS, DHL, TNT, FedEx, or by air.

3). Delivery time: 7-10 days for goods in stock, 3-4 weeks for mass production goods.

4). Packaging Details: Packed in anti-static bags with foam box to ensure safety in transportation.

5). Delivery Details: 1 to 30 days. The delivery fee is up to the weight and volume of the products.

6). Samples: Our company offers samples for quality test or other business purposes, but we kindly ask you to pay for samples and the freight.

Warranty :
The period is within 12 months since the date of shipping out under normal using and storage conditions.
