3.97Inch 480x800 450cd/m2 TFT Ips Lcd Screen

    Buy cheap 3.97Inch 480x800 450cd/m2 TFT Ips Lcd Screen from wholesalers

    Buy cheap 3.97Inch 480x800 450cd/m2 TFT Ips Lcd Screen from wholesalers
    • Buy cheap 3.97Inch 480x800 450cd/m2 TFT Ips Lcd Screen from wholesalers
    • Buy cheap 3.97Inch 480x800 450cd/m2 TFT Ips Lcd Screen from wholesalers
    • Buy cheap 3.97Inch 480x800 450cd/m2 TFT Ips Lcd Screen from wholesalers
    • Buy cheap 3.97Inch 480x800 450cd/m2 TFT Ips Lcd Screen from wholesalers
    • Buy cheap 3.97Inch 480x800 450cd/m2 TFT Ips Lcd Screen from wholesalers
    • Buy cheap 3.97Inch 480x800 450cd/m2 TFT Ips Lcd Screen from wholesalers

    3.97Inch 480x800 450cd/m2 TFT Ips Lcd Screen

    Ask Lasest Price
    Brand Name : SUNMEG
    Model Number : LX39705LX-05
    Certification : CE,FCC,ROHS
    Price : Negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 60K pcs/month
    Delivery Time : 5-8 working days
    • Product Details
    • Company Profile

    3.97Inch 480x800 450cd/m2 TFT Ips Lcd Screen


    Why choose our company

    1.Small MOQ accepted.
    2.Competitive price and short lead-time.
    3.ISO9001 and ROSH certificated factory supplied.
    4.Professional?technicians and QC team test the original products one

    by one to ensure every products are perfect before package and shipment!
    5.Dedicated and professional sales team provide immediate service


    FeatureSpecificationUnit
    Display SpecBrandWise-
    Size3.97inch
    Resolution480*800dots
    Pixel pitch0.108 (H) *0.108(V)mm
    Display ModeIPS/NB-
    Viewing DirectionAllo'clock
    Gray Scale Inversion DirectionAllo'clock
    Luminance300cd/m2

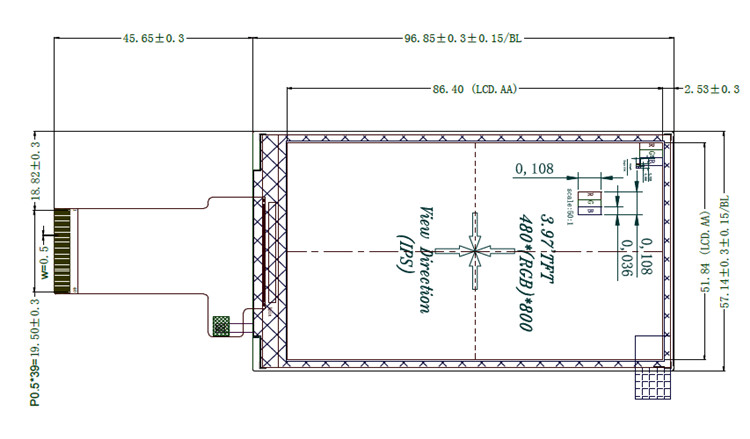

    Mechanical
    Characteristics
    LCM (W * H * D)57.14*96.85*1.80mm
    Active Area (W * H )51.84*86.40mm
    With /Without TPWithout TP-
    LED Numbers8-LEDpcs
    Operation temperature-20~+70ºC
    Storage temperature-30~+80ºC
    Electrical
    Characteristics
    InterfaceRGB-18BIT/39PIN-
    LCM Power Supply2.8V
    LED Power Supply24.0V
    Color Depth262K-
    LCM Driver ICILI9806E-
    CTP Driver IC--

    3.97Inch 480x800 450cd/m2 TFT Ips Lcd Screen3.97Inch 480x800 450cd/m2 TFT Ips Lcd Screen3.97Inch 480x800 450cd/m2 TFT Ips Lcd Screen3.97Inch 480x800 450cd/m2 TFT Ips Lcd Screen3.97Inch 480x800 450cd/m2 TFT Ips Lcd Screen3.97Inch 480x800 450cd/m2 TFT Ips Lcd Screen3.97Inch 480x800 450cd/m2 TFT Ips Lcd Screen



    Quality Control :

    Our technicians and QC team test the original products one by one to ensure every products are perfect one before package and shipment!
    We will test goods strictly according to our standard inspection before shipment.
    If exceed this standard, clients can ask for returning and get new.

    FAQ:
    Q: Do you have data sheets?
    A: Yes, we have data sheets of our LCD modules. You may ask our sales for help.

    Q: Do you have LCD modules in stock?
    A: We don’t have products in stock now. But we may prepare some later on, please feel free to ask our staff to check.

    Q: How can I know which size is suitable for our application?
    A: Please ask your engineer for guidance to make sure the size of your product(length*width*thickness in mm) and the
    function of it. Based on the above information, we will suggest the ideal size of the LCD module for your product.

    Q: How to choose a suitable model of LCD display for a new project?
    A: Think about the following key points to define a model you need, such as size/resolution/thickness/LCD interface
    view angle/brightness/operation temperature and so on.


    Q. How do I work with you on Customized products?
    A: Firstly please provide us the description of your special requirements, any Drawing or Specification---Our engineers will work out

    the compatible solution and also mould cost (if any)---We provide Drawing and Specification for Approval---We provide samples

    for approval after reliability test and aging test---We make modification if necessary---We do small quantity of

    trial order (if required)---We do mass production.


    Q. Can I have my own silk screen Logo, Part Number or small label?
    A: Yes, Definitely. It may requires MOQ, please refer to our sales, thanks.
