Applied: Household appliances, machine
Product name: LCD polarizer Graphic LCD module
Brand Name: SUNMEG
Cerificate: Rohs
Manufacturing Experience: 10 year
Place of Origin: Guangdong China
Model size ( Versatility ): Length *width * Highth:
Pitch: 2.45mm
Viewing sirection: Length *width
Viewing direction: 3H / 6H / 9H / 12H / Full viewing angle
Display type: Mono segent LCD display / Dot matrix display mode
VA TN HTN STN FSTN
Positive Negative
Different polarizer options
Polarizer type: Reflective / Transmissive / Transflective
Wide temperature range
Operating temperature: (-20 TO -70)
Storage temperature: (-40 TO -80)
Connector: PIN Zebra FPC
Cob Cog
Low power consumption
Operating voltage: 2.8V to 5.0V
Drive mode: 1/3BIAS 1/4DUTY

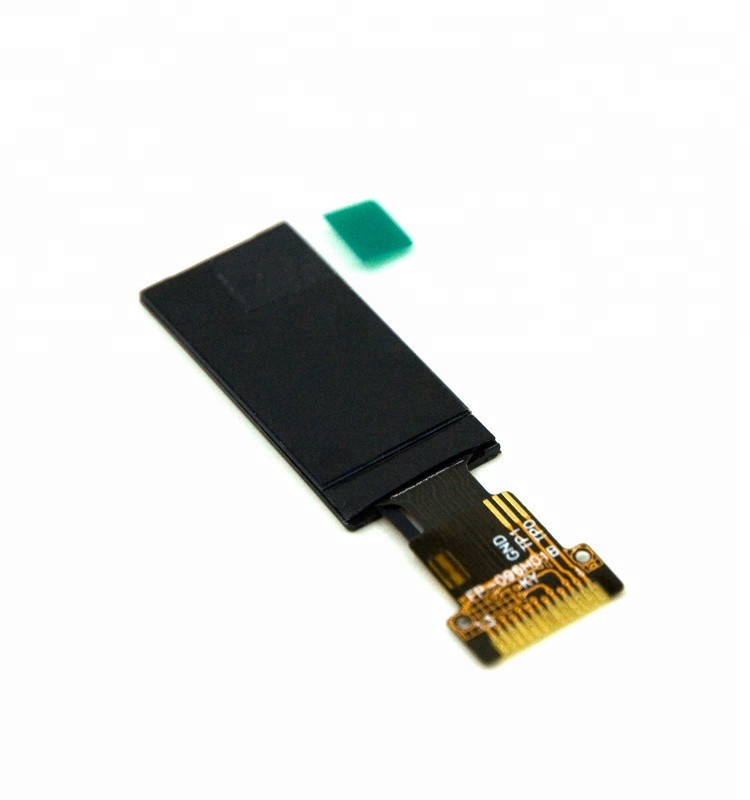

Display Size | 0.96 inch tft lcd display |
Controller IC | ST7735S |
Viewing Angle | All View angle |
Overall size | 13.5*27.95*1.5 mm |
Active area | 10.8*21.7 mm |
Driver IC | ST7282E |
LCD Type | TFT TRANSMISSIVE |
Interface Type | Parallel RGB 24-Bit |
Backlight Type | the white LEDS, Serial |
luminance | 300 cd/m2 |
Input voltage | 3.3V |
Operating Temp | -20°C~+70°C |
Storage Temp | -30°C~+80°C |
Pin NO. | 13 pin |
QUALITY CONTROL:
We are ISO9001:2008 and also ISO9001:2015 Certified company. We've
been adhering to the standards strictly in our production.
We provide environmentally-friendly products compliant with EU
requirements: ROHS and CE.
Our products are 100% Visual and Function test before shipments.
Meanwhile, All our products must pass necessary tests, Store and
Operate in
High and Low Temperature & High Humidity Environment, ESD and
anti-interference test , Drop and Vibration Test. Our experience
and proficiency
make the qualification rate always being 99.7% or above.
Packaging & Shipping & Delivery
Packaging Details:
All the products are packed in right way to keep it safe.
For small sizes of products we use tray + carton,
For bigger sizes we use foam slot + carton.
we also design packages according to customers' requirements
Shipping Details:
For small quantity orders: we ship by UPS Air-Express, or
DHL/FEDEX/TNT/ EMS Express service, it is safe and fast.
For large quantity orders: we ship by buyer's cargo agent in China,
FAQ:
Q: How long is the product warranty and service?
A: The product is valid for 1 year and is a lifetime technical
support service.
Q: Can you customize the product? what do you need?
A: We can customize as needed, and the quantity has a minimum order
quantity requirement.
Q: Can you provide drawings and related procedures?
A: We can provide drawings and procedures for customers to confirm.
Q: Can the LCD module be Export directly?
A: The products are through the relevant certification, it can be
exported.
Q: Are you a trader or a factory?
A: We are manufacturers, have production trademark and production
workers.
Q: Can you produce on the OEM?
A: Yes, we can.
Q: How do you manage product quality?
A: The products are baked, aging, electrical measurement and other
procedures for test
Q: How many years for warranty can you provide?
A: Normally 1 year. Can be longer but price should be modified.
Q: How long can I get reply?
A: Within 24 hours. Chinese working time 9:00-18:00 Monday-Friday
online service to help you solve problems.Also reply by phone is
possible at night time and weekends.
Q: What shall we do if we find any item missing or defectiv after
receiving the goods?
A1: Please contact us ASAP, we will check it and offer the best
solution according to the situation.
