| Main Application |
| Telecommunication Devices | Telephone, Interphone, watch, radio, etc. |
| Home Appliances | Washing Machine, Refrigerator, Home Integrator etc |
| Industrial Control | Homotaxial Numerically-controlled machine tool |
| Instrument and Apparatus | Tester, Medical instruments |
| Vehical-mounted Digital | MP3, MP4 and vehical-mounted air conditioner |
| Mining | Mine's lamp charger, gas tester |
| Marine | Salinity tester |
According to customers' various requests,TFT lcd, lcd panel, lcd
monitor, lcd screen, FSTN and STN lcd display, industrial lcd, we
can match all accessories which inclusive of driver board,LED
backlight & LVDS cables.
ODM/OEM accetable
Various LCD Display Mode with different backlight color and
temperature range available
Product Range
1) TN, STN, FSTN LCD panels / modules
2) Customized LCD panels / modules

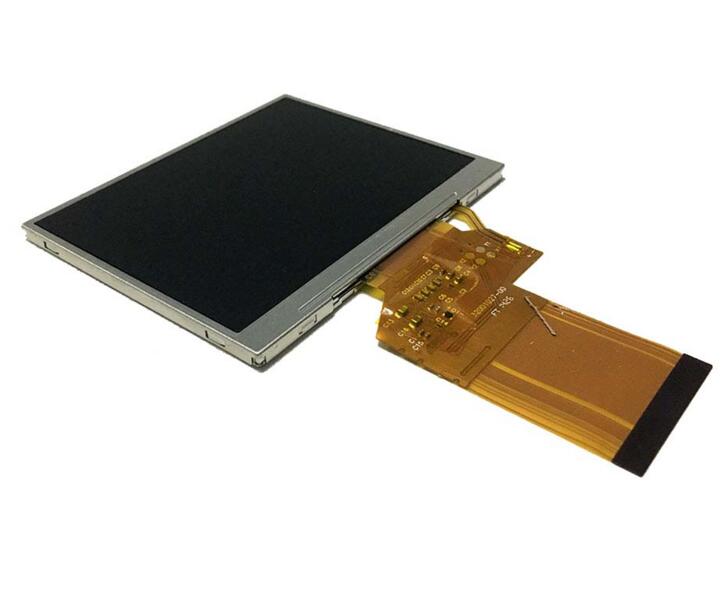

3) Small(1.5 inch-7 inch)TFT LCD
| Color | 16.7M color |
| Pixel | RGB |
| Contrast Ratio | 300:01:00 |
| Brightness | 350cd/m2 |

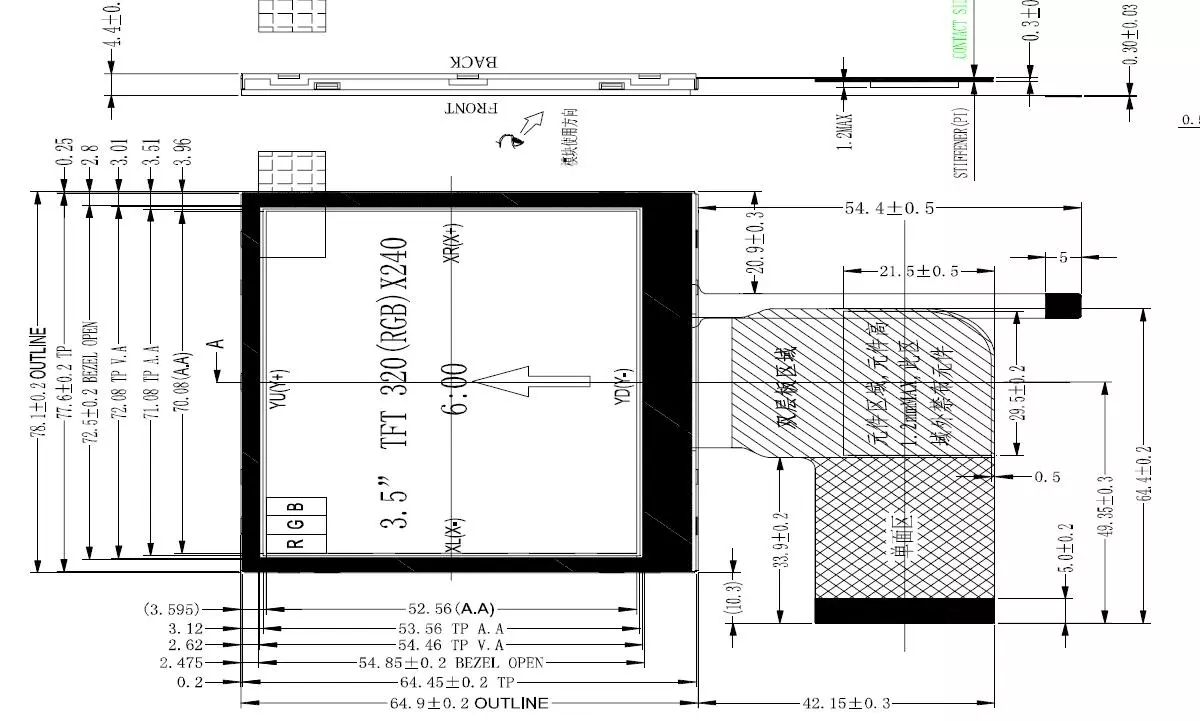

| Outline Dimension | 78.1(W)X64.9(H)X4.4(T)mm |
| Viewing Area | 72.08(W)X54.46(H)mm |
| Active Area | 70.08(W)X52.56(H)mm |
| Resolution | 320x240 |
| Dots | 0.198*0.198mm |
| Pitch | 0.5mm |
| Drive Power Supply Voltage | 3.3V |
| Viewing Angle | 06:00 |
| Operation Temperature | -20°C ~ +70°C |
| Storage Temperature | -30°C~ +80°C |
| Display Mode | TFT LCD |
| Touch panel | Resistive touch panel or capacitive touch panel |
| FPC Lenght | FPC connector type |
| Response Time | 100ms |
| IC | SSD2119 |
| IC Packaging | COG |
FAQ:
Q: How can I trust your product quality?
A: Our Raw materials are all ROHS compliant .
Meanwhile, we do necessary Aging test and Reliability tests to our
TFT Display modules, eg. Store and Operate in High and Low
Temperature & High Humidity Environment, ESD and anti-interference
test , Drop(with package) and Vibration Test.
Our Touch Screens goes through Salt spray test, Hardness test,
Steel ball Drop test, Flatness test, Thermal shock test…
--Our experience and proficiency make the qualification rate always
being 99.7% or above.
Q:Which sizes of LCDs and Touch Panels do you provide?
A: Small sizes which include: 0.96”, 1.22”, 1.3”, 1.44”, 1.54”,
1.77”, 2.0”, 2.4”, 2.7”, 2.8”, 3.0”, 3.2”, 3.5”, 3.95”, 3.97”,
4.3”, 5”, 5.6”, 6.86”.
Middle sizes which include: 7”, 8”, 9”, 10.1”, 10.2”, 13.3”.
Q:Can we customize product? What cost will be included?
A:The product can be customized, but TFT lcd module has different
tooling cost, which includes FPC, Touch Screen, Backlight , Bezel
and so on.
Q: What kind of packaging? The transport process will not be
damaged?
A:Our products are divided into two categories, small - medium size
use knife card isolation packaging, l
arge size screens are used in aircraft box packaging, all packages
are protected by outer box and strapping to ensure the safety of
material transportation.
Q: Can you provide product drawings and test reports?
A: According to customer needs, our company can provide product
related information and test reports.
