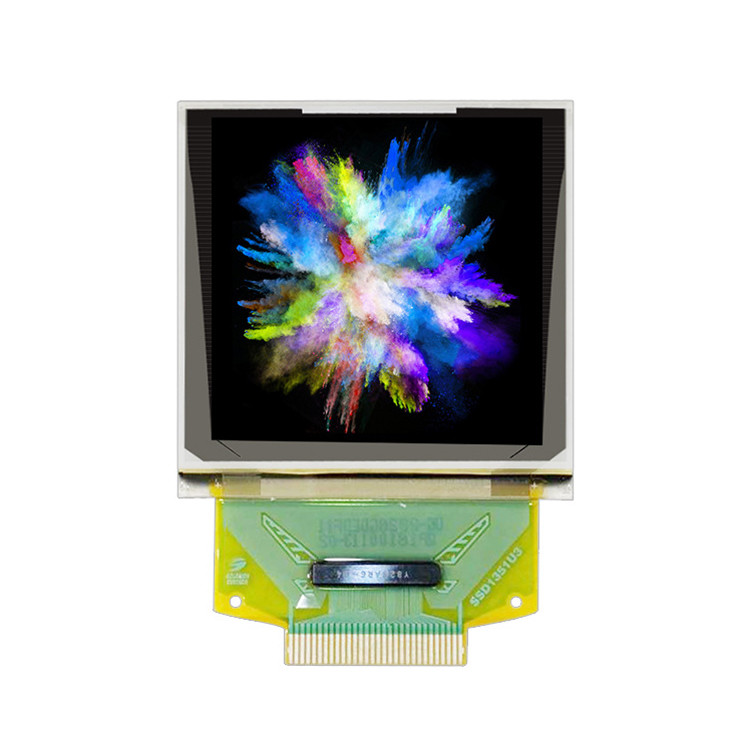

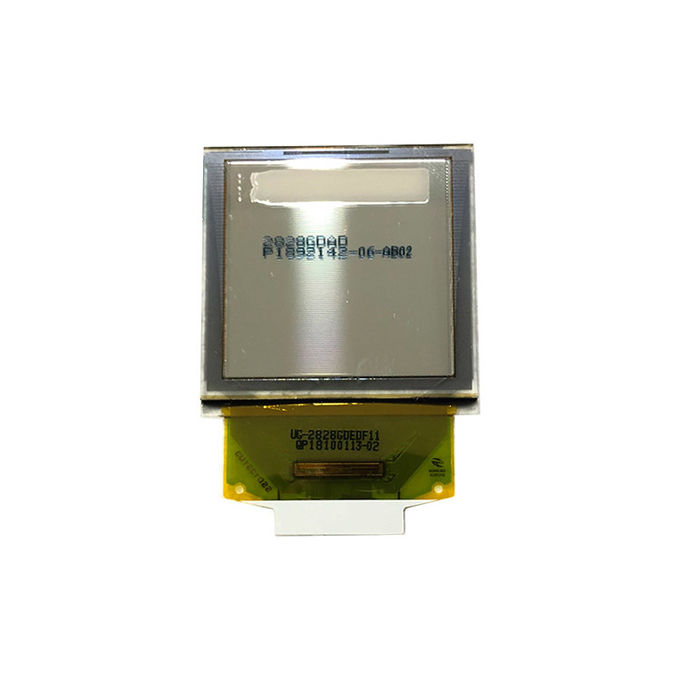

The OLED display module made of 128xRGBx128 OLED pixels,diagonal is
only 1.5 inch.
The controller ic SSD1351, communicates via 6800/8080 8-bit
parallel and 3-wire/4-wire
serial interface. Because the display makes its own light, no
backlight is required. This
reduces the power required to run the OLED and is why the display
has such high
contrast,extremely wide viewing angle and extremely operating
temperature.The fpc
is the connector type,we offer optional zif connector(fpc
connector).
| Name | 1.5 Inch Full Color OLED Display Screen 128x128 OLED Display |
| Display Color | Full color | Dox Matrix | 128x128 Resolution |
| Warranty | 1 year | Dark Room Contrast Ratio | 10000:1 |

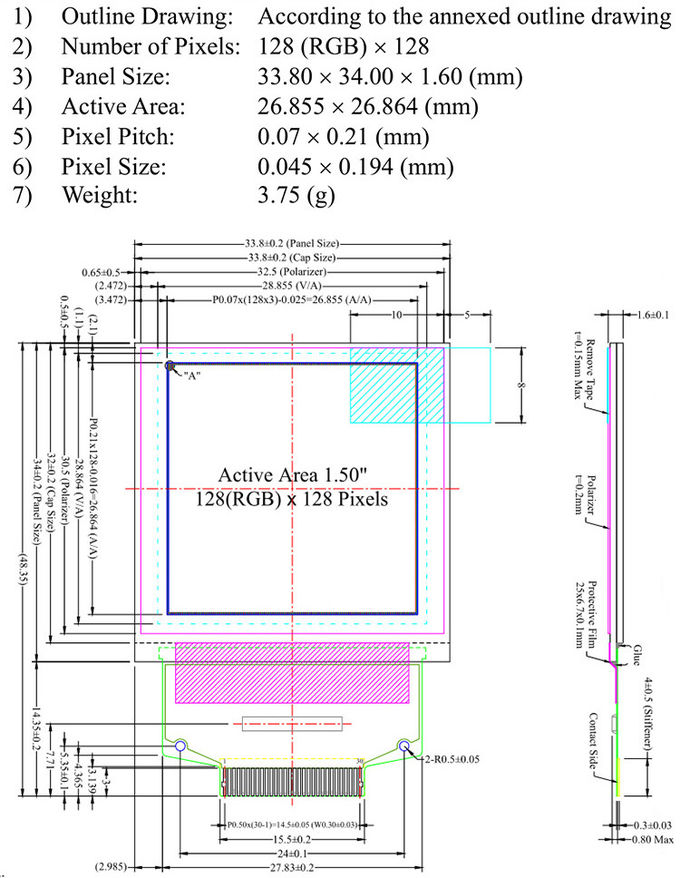

| Outline Dimension | 33.80 x 48.35 x 1.60mm | Active Area(HxV mm) | 26.855 x 26.864mm |
| Response Time | 10 μs | Interface | SPI, 30pin |
| Drive Duty | 1/128 Duty | Brightness | 90cd/m2 |
| IC Driver | SSD1351 | Supply Current/Voltage | 240mA,2.8V |
| Operation Temperature | -40℃~70℃ | Storage Temperature | -40℃~85℃ |
| View angle | Free | Resolution Pitch | 0.07x0.21 mm |
Packaging and Delivery:
1. Payment Terms: T/T, Paypal
2. Shipping: Prompt delivery by UPS, EMS, DHL, TNT, FedEx, or by
air.
3. Delivery time: 7-10 days for sample, 3-4 weeks for mass
production goods.
4. Packaging Details: Packed in anti-static bags with foam box to
ensure safety in transportation
5. Delivery Details: 1 to 30 days. The delivery fee is up to the
weight and volume of the products.
FAQ:
1.Why Choose P&S?
1.Small MOQ accepted.
2.Competitive price and short lead-time.
3.ISO9001 and ROSH certificated factory supplied.
4.Professional?technicians and QC team test the original products
one by one to ensure every products are perfect before package and
shipment!
5.Dedicated and professional sales team provide immediate service
2.What can we do for you?
Customize service is available.
3.What is sthe lead time of products?
7-10 days for goods in stock, 3-4 weeks for mass production goods ?
4.Payment methods?
T/T , Paypal and western union .
