We offers a wide product range of small to medium sizes TFT display
modules
in sizes ranging from 0.96” through 10.1”, no matter it is by
engineering a
custom display module, or by implementing a standard display from
our wide
selection of technologies, including being integrated with touch
sensors
and/or cover lenses. These TFT LCD modules are including options of
TFT
panel ,the products have been applied in a wide range of
industries including E-cigarettes, wearable deivices, energy
meter equipment, fiscal processors, portable devices.

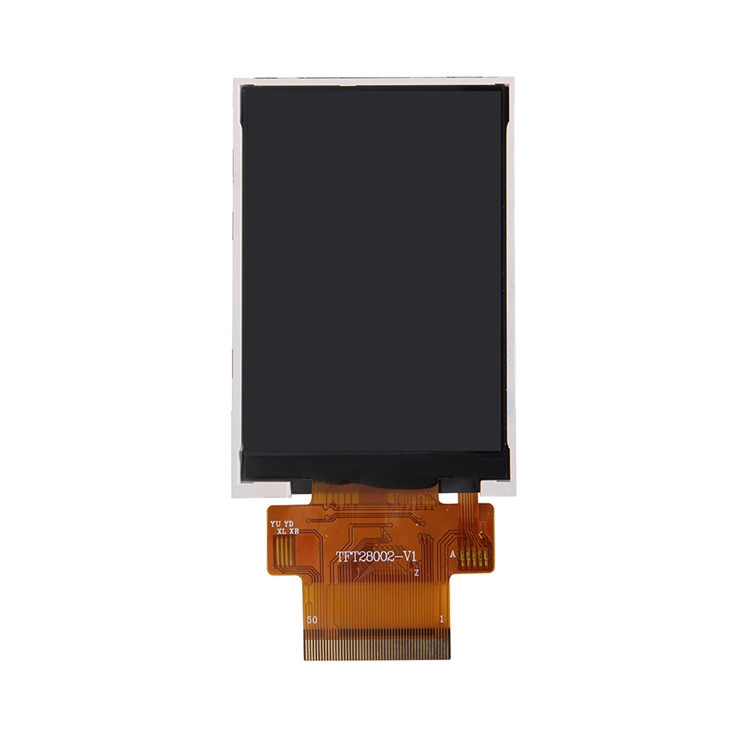

TFT LC D module. This module is composed of a TFT LCD
Panel, driver ICs, FPC and a Backlight unit.
| Product name : | TFT LCD display |
| Resolution: | 240*320 |
| Outline Dimension: | 50*69.2*2.3mm |
| LCD Active Area(mm): | 43.2* 57.6mm |
| Interface: | MCU 8BIT |
| Viewing Angle: | 12 o' clock |
| Driving IC: | ST7789V |
| Display Mode: | Normally White,Transmissive |
| Technology Type: | a-Si TFT active matrix |
| Surface treatment: | Anti-Glare |
| Pixel Pitch (mm): | 0.198(H) x 0.198(W) |
| Pixel Configuration: | R.G.B. Stripe |
| FPC type: | ZIP |
| Operating Temperature: | -10 to +60ºC |
| Storage Temperature: | -20 to +70ºC |
| Brightness: | 200Cd/m2 |
| Warranty: | 12 months |
FAQ:
Q:Products are in stock? How long can you deliver?
A:Our inventory is mainly semi finished products and raw materials
and a small amount of finished goods.
Small batch delivery needs 2-3 week, mass delivery takes 3-4 weeks.
Q: How long is the warranty and service of the product?
A: The damage caused by the product during normal use, during the
warranty period, our company
is free to repair, the warranty period, or the damage caused by
improper use is not within the scope
of free maintenance. As long as it is our products, we can provide
technical support services.
Q:The LCD screen can be exported directly? what certification could
provide ?
A:Liquid crystal products comply with the RoHS standard, can be
directly exported.Products by RoHS, CE, SGS certification.
Q: What kind of packaging? The transport process will not be
damaged?
A:Our products are divided into three categories, small size
screens use foam packaging,
small and medium size use knife card isolation packaging, large
size screens are used
in aircraft box packaging, all packages are protected by outer box
and strapping to ensure the safety of material transportation.
Q: Are you open to OEM processing?
A: Yes, we can OEM.
Q:How to control the quality of products?
A: The company has a professional quality team, and all products
are shipped with 100% inspection.
