The sunmeg technology co ., ltd is manufacturer and distributor in
electronic components.
We can offer quality products in very competitive price for
electronics components, as well as best
service, in time delivery, small order acceptable, etc.
Fast delivery is our principle, our normal delivery time as below:
Sample delivery date is: 1-3days.
Production delivery time: 7-10days.
New product development: 15-20days
| LCD Type | High Brightness TFT Display |
| Display Color | RGB color |
| View Direction | 12 O'Clock |
| Operating Temperature | -20+70 °C |
| Store Temperature | -30~+80 °C |
| Module Size | 37.68*51.3*2.23mm |
| Active Area(W×H) | 31.68*39.6mm |
| Number of Dots | 176*220 dots |
| Controller | ILI9225G |
| Power Supply Voltage | 3.3V |

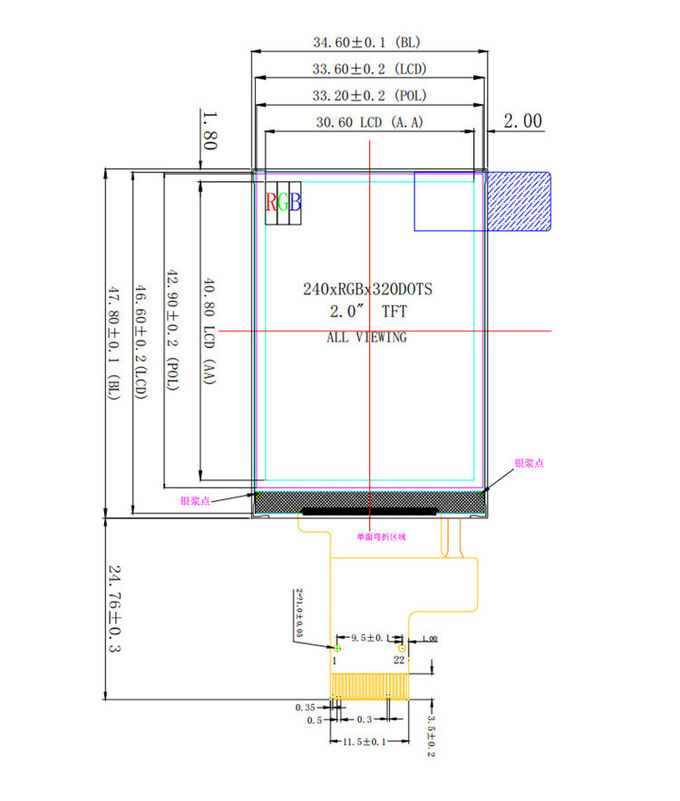

| Outline Dimensions | Refer to outline drawing |
| Backlight | LEDS(white) |
| LCD Drive Mode | Static Drive LCD Module |
FAQ:
Q: Is the product in stock? How long production cycle?
A: Some products are in stock, Small batch production for 1-2
weeks,Mass production for 3-4 weeks.
Q. Which sizes of LCDs and Touch Panels do you provide?
A: Small sizes which include: 0.96", 1.22", 1.3", 1.44", 1.54",
1.77", 2.0", 2.4", 2.7", 2.8", 3.0", 3.2", 3.5", 3.95", 3.97",
4.3", 5", 5.6", 6.86".
Middle sizes which include: 7", 8", 9", 10.1", 10.2", 13.3".
Q. Can I have a sample order of before formal order ?
A: Yes, sample order is always welcome for new projects or
replacement of running projects. We have stock of many standard
models of TFT LCD modules and Touch screens from 0.96inch to
13.3inch , which means delivery is able to be made the same day as
order.
Q. What is the lead time for Sample order and Mass Production
order?
A:The LCD display standard products, the lead time for samples is
usually 1-7 days, for mass production it could be as fast as 10
days.
For Customized products,We are able to get new FPC ready in 7days,
new Backlight in 15days, and new Capacitive touch panel or
Resistive touch panel in 18days.
Mass production of special products could be as fast as 3weeks.
In summary, based on our years of big output, we have been keeping
good relationship with LCD panel, IC and other material suppliers,
we had a steady supply even when there was heavy shortage of
materials.
Q. How do I work with you on Customized products?
A: Firstly please provide us the description of your special
requirements, any Drawing or Specification---Our engineers will
work out
the compatible solution and also mould cost (if any)---We provide
Drawing and Specification for Approval---We provide samples for
approval after reliability test and aging test---We make
modification if necessary---We do small quantity
of trial order (if required)---We do mass production.
Q. Can I have my own silk screen Logo, Part Number or small label?
A: Yes, Definitely. It may requires MOQ, please refer to our sales,
thanks.
