TFT LCD Touch Screen Application:
1. Finance Terminal: POS system, ATM machine, Self-service
Terminal, Checkout machine, Vending machine
2. Consumer Electronics: Wearable Smart devices, Handhold
entertainment equipment, Learning machine,Tablet computer
3. Household Appliances:Thermostat, Smart Home device
4. Industrial Equipment: HMI, Professional instrumentation,
industrial Control device
5. Medical Equipment: Operation,inspection device
No. | Item | Specification |

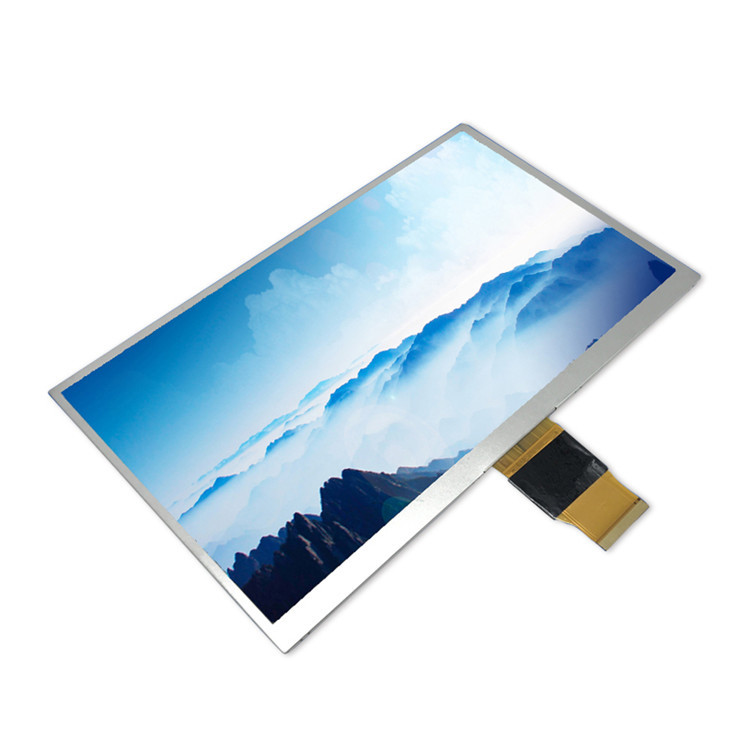

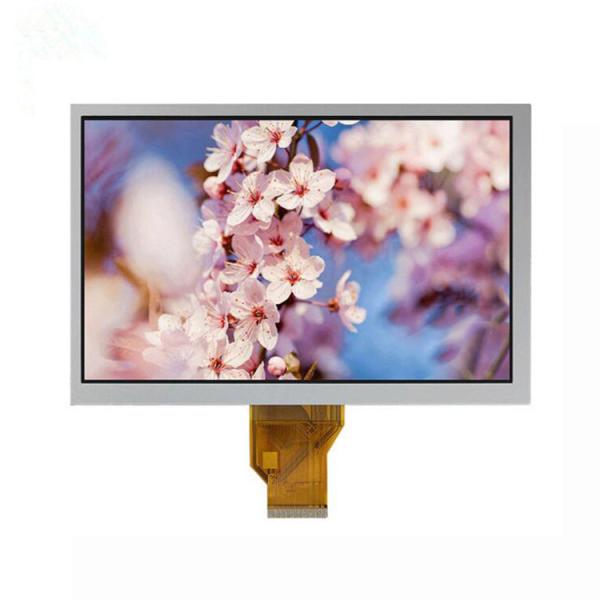

1 | LCD size | 9.0 inch |
2 | Brightness | 1000 cd/m2 |
3 | Resolution | 1024x600 |
4 | Active area | 198.000(W) × 111.696(H) mm |
6 | Operating Temperature | -20 ~ +70 ℃ |
7 | Outline Dimension | 211.1(W)×126.5(H)×5.9(D) mm |
8 | Model Name | DBT090CTV50R9 |
9 | Viewing Angle | 70/70/50/70 (Typ.) |
10 | Display mode | TN |
11 | Backlight power consumption | 2.97W(Typ.) |
12 | Panel power consumption | 0.360W(Typ.) |
13 | Warranty | 1 year |
About Our Company:
We was founded and located in Guangdong China, Is a high-tech
enterprise specializing in the design, development and production
of lcd display
module full scheme.The number of employees reached 99-299. We have
perfect pre - sales and after - sales service.Choose us to give you
the perfect ordering service
Our technicians and QC team test the original products one by one
to ensure every products are perfect one before package and
shipment!
We will test goods strictly according to our standard inspection
before shipment.
If exceed this standard, clients can ask for returning and get new.
Packaging & Shipping & Delivery
Packaging Details:
All the products are packed in right way to keep it safe.Please rest assured to order.
For small sizes of products we use tray + carton,
For bigger sizes we use foam slot + carton.
Support for custom wrapping with LOGO.
FAQ:
Q: Do you have data sheets?
A: Yes, we have data sheets of our LCD modules. You may ask our
sales for help.
Q: Do you have LCD modules in stock?
A: We don’t have products in stock now. But we may prepare some
later on, please feel free to ask our staff to check.
Q: How can I know which size is suitable for our application?
A: Please ask your engineer for guidance to make sure the size of
your product(length*width*thickness in mm) and the
function of it. Based on the above information, we will suggest the
ideal size of the LCD module for your product.
Q: How to choose a suitable model of LCD display for a new project?
A: Think about the following key points to define a model you need,
such as size/resolution/thickness/LCD interface
view angle/brightness/operation temperature and so on.
Q. How do I work with you on Customized products?
A: Firstly please provide us the description of your special
requirements, any Drawing or Specification---Our engineers will
work out
the compatible solution and also mould cost (if any)---We provide
Drawing and Specification for Approval---We provide samples
for approval after reliability test and aging test---We make
modification if necessary---We do small quantity of
trial order (if required)---We do mass production.
Q. Can I have my own silk screen Logo, Part Number or small label?
A: Yes, Definitely. It may requires MOQ, please refer to our sales,
thanks.
