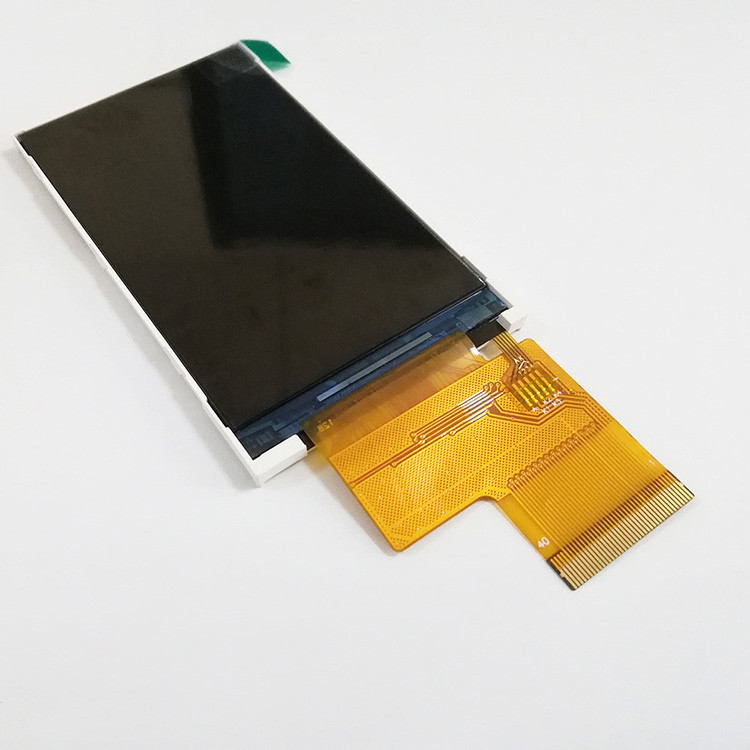

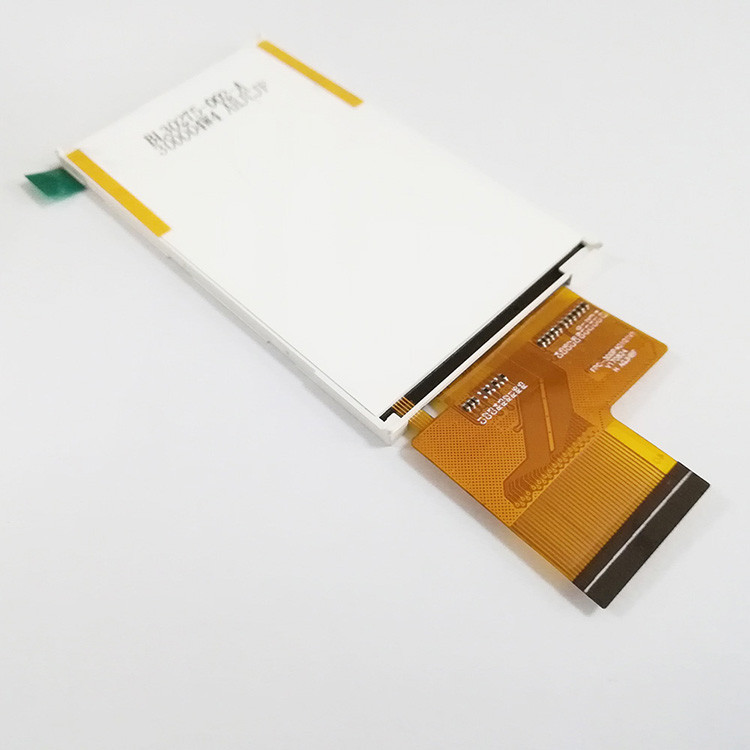

230Cd/M2 TFT LCD Panel

Our products are 100% Visual and Function test before shipments. Meanwhile,
All our products must pass necessary tests, Store and Operate in High and Low
Temperature & High Humidity Environment, ESD and anti-interference test , Drop
and Vibration Test. Our experience and proficiency make the qualification rate always
being 99.7% or above.

Product Name	TFT LCD Panel
Usage	Home Appliance, GPS, Door Bell, Auto Device, Medical Device, Industrial Design
Digital LCD Module Type	Counting module
Touch Screen Type	Capacitive
Type	LCM
Response Time	1ms
Viewing Angle	IPS
Display Technology	TFT
DOT-Matrix Graphic LCD Module Type	Row/Column Control Type
LCD Drive Mode	Static Drive LCD Module
Customized	Customized
Resolution	360XRGBX640
Assy Type	Cog+FPC+Bl
Driver	ST7701S
Interface	RGB
Contrast Ration	500:1
NTSC	70%
Luminance	230CD/M2
Operating Temperature	-20~70°c
Storage Temperature	-30~80°c
Trademark	Kaihang
Specification	3.0"
Origin	China
HS Code	9013803010

NO.	Symbol	I/O or connect to	Description	When not in use
1	NC	Power ground.	-
2	VDD	Power supply for analog and booster circuits, 2.3V~3.3V.	-
3	IOVCC	PWR SUPPLY	Power supply for digital interface , 1.65V~3.3V.	-
4-6	NC	-	No connect.	-
7-8	GND	PWR SUPPLY	Power ground.	-
9	CS	I/O	Serial communication chip select.	GND/IOVCC
10	SDA	I/O	Serial communication data input.	GND/IOVCC
11	SCL	I/O	Serial communication clock input.	GND/IOVCC
12	HS	I/O	Horizontal Sync input. Negative polarity.	GND/IOVCC
13	VS	I/O	Vertical Sync input. Negative polarity.	GND/IOVCC
14	DCLK	I/O	Dot clock signal for RGB interface operation.	GND/IOVCC
15-16	NC	-	No connect.	-
17-18	GND	PWR SUPPLY	Power ground.	-
19-26	DB7-DB0	I/O	R.G.B Data bus.	GND/IOVCC
29-30	LEDA	LED DRIVER	Backlight anode.	-
31-32	LEDK	LED DRIVER	Backlight cathode.	-
33-34	GND	PWR SUPPLY	Power ground.	-
35-36	NC	-	No connect.	-
37	YU	-	RTP up signal.	-
38	XL	-	RTP left signal.	-
39	YD	-	RTP down signal.	-
39	XR	-	RTP right signal.	-
