Product Application:
Our LCD module size are from 2.8 inch to 10.1 inch which are widely
used in digital camera, DV, security monitoring, carcorder, PMP,
MID and Education Learning Aid, POS Machine etc.
| Product | Application |
| Small-size TFT LCD display (1.44inch~4.3inch) | mobile device, watch, toy, medical equipment, Office electronic
equipment, camera, air-condition display, etc. |
| Mid-size TFT LCD display (5.0inch~10.0inch) | mobile device, medical equipment, car, automotive product,
industrial control equipment, POS, PDA, Household Video doorbell,
air-condition display, etc. |
| Big-size TFT LCD display (10inch and above) | educational product, automotive product, video door phone,
Audiovisual equipment, DVD player, media play, tablet PC, Security
Products, etc. |
| TN/STN//FSTN/OLED | elevator controller, watch, electronic product, air-condition
display, all kinds of instrument, etc. |
| Plastic mould | industrial control equipment, electronic product, toy, Security
Product, IT digital product, sports equipment, etc. |
General Specification:

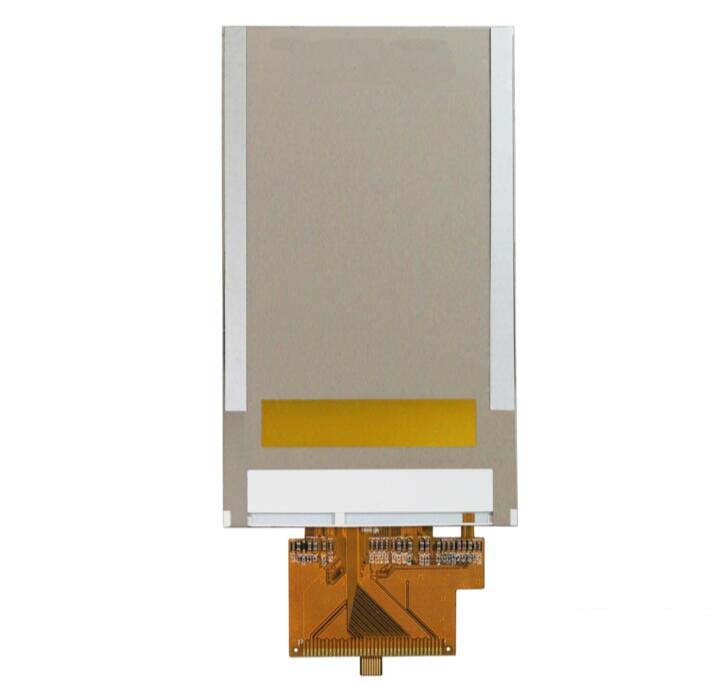

| Item Name | 4.3 inch 480X800 IPS TFT LCD display MCU interface with capacitive
touch panel |
| Color | 16.7M color |
| Pixel | RGB |
| Contrast Ratio | 500:1 |
| Brightness | 200cd/m2 |

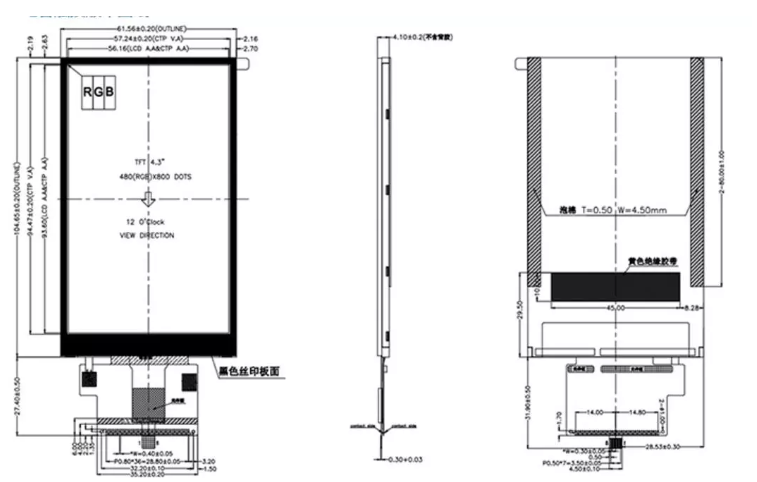

| Outline Dimension | 61.56(W)X104.65(H)X4.10(T)mm |
| Viewing Area | 57.24(W)X94.47(H)mm |
| Active Area | 56.16(W)X93.60(H)mm |
| Resolution | 480X800 |
| Dots | 0.153*0.153mm |
| Pitch | 0.5mm |
| Drive Power Supply Voltage | 3.3V |
| Viewing Angle | 12:00 |
| Operation Temperature | -20°C ~ +70°C |
| Storage Temperature | -30°C~ +80°C |
| Display Mode | TFT LCD |
| Touch panel | Resistive touch panel or capacitive touch panel |
| FPC Lenght | FPC connector type |
| Response Time | 100ms |
| CTP interface | GT9147, I2C |
| IC Packaging | COG |
FAQ:
Q: How can I trust your product quality?
A: Our Raw materials are all ROHS compliant .
Meanwhile, we do necessary Aging test and Reliability tests to our
TFT Display modules, eg. Store and Operate in High and Low
Temperature & High Humidity Environment, ESD and anti-interference
test , Drop(with package) and Vibration Test.
Our Touch Screens goes through Salt spray test, Hardness test,
Steel ball Drop test, Flatness test, Thermal shock test…
--Our experience and proficiency make the qualification rate always
being 99.7% or above.
Q:Which sizes of LCDs and Touch Panels do you provide?
A: Small sizes which include: 0.96”, 1.22”, 1.3”, 1.44”, 1.54”,
1.77”, 2.0”, 2.4”, 2.7”, 2.8”, 3.0”, 3.2”, 3.5”, 3.95”, 3.97”,
4.3”, 5”, 5.6”, 6.86”.
Middle sizes which include: 7”, 8”, 9”, 10.1”, 10.2”, 13.3”.
Q:Can we customize product? What cost will be included?
A:The product can be customized, but TFT lcd module has different
tooling cost, which includes FPC, Touch Screen, Backlight , Bezel
and so on.
Q: What kind of packaging? The transport process will not be
damaged?
A:Our products are divided into two categories, small - medium size
use knife card isolation packaging, l
arge size screens are used in aircraft box packaging, all packages
are protected by outer box and strapping to ensure the safety of
material transportation.
Q: Can you provide product drawings and test reports?
A: According to customer needs, our company can provide product
related information and test reports.
